Hikvision DS-PM1-O4H-H Wired 4-way power relay expander
-
- DS-PM1-O4H-H is a wired 4-way power relay expander. The expander connects directly to the 100 V~240 V source and
closes/opens the circuit on command via Speed-X from the AX Hybrid Pro control panel. Each relay can handle current of up
to 16A, which is enough to connect a very power-hungry device. - Specification
- DS-PM1-O4H-H is a wired 4-way power relay expander. The expander connects directly to the 100 V~240 V source and
Hardware features
-
- Serial port – 1 TTL serial port
- Tamper-Proof – Support (front and rear)
- Bus – 2×Speed-X bus, 1 uplink for control panel connection and 1 downlink for next expander
Electrical characteristics
-
- Power supply – 9 to 24 VDC, 1A
- Power consumption
- Maximum current 210 mA@12 VDC;
- Quiescent current 65 mA@12 VDC
Display
-
- LED Indicator – 1 for power, or fault
General
-
- Dimension(WxHxD) – 110 mm × 155 mm × 32.5 mm
- Shell material – Plastic
- Weight – 333.1 g
- Operation temperature – -10 °C to 40 °C
- Operation humidity – 10% to 90%
Available Model

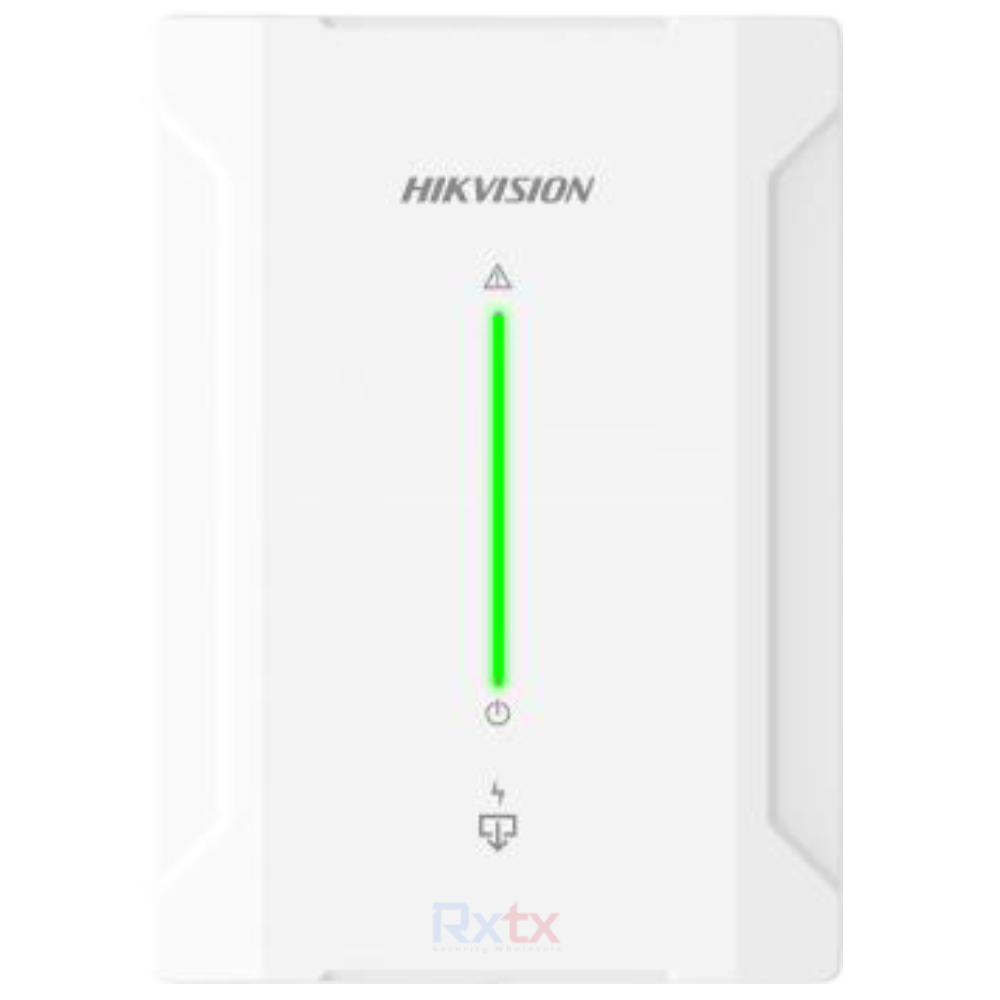

Hikvision DS-PM1-O4H-H Wired 4-way power relay expander-Isometric View
Hikvision DS-PM1-O4H-H Wired 4-way power relay expander
Hikvision DS-PM1-O4H-H Wired 4-way power relay expander, supporting expander cascading with 1 uplink Speed-X port and 1 downlink Speed-X port.
Product SKU: Hikvision DS-PM1-O4H-H
Product Brand: Hikvision
Product Currency: AUD
Product Price: 94
Product In-Stock: InStock
